Parking Garage Waterproofing: Membranes, Installation, and Maintenance Best Practices

Water infiltration poses one of the greatest threats to the longevity and safety of parking garages. Without effective parking garage waterproofing, concrete surfaces and walls become vulnerable to corrosion, structural damage, and costly repairs.

Selecting the right waterproof membranes and applying them correctly is essential to protect these facilities from water intrusion and vehicular wear. This guide offers a detailed look at the types of membranes best suited for parking garages, installation best practices, and maintenance strategies critical to extending the service life of waterproofing systems.

Let’s explore the technical considerations that ensure durable, high-performance waterproofing solutions for parking structures.

Technical considerations for waterproofing parking structures
Detailed view of a waterproofing membrane being applied to a parking garage deck.


Types of Waterproofing Membranes and Coatings for Parking Garages

Overview of Parking Garage Waterproof Membranes

Parking garage waterproof membranes are specialized materials applied to vertical walls and horizontal concrete surfaces to prevent water penetration and related damage. These membranes serve as pivotal barriers that protect the structural integrity of concrete, steel reinforcements, and finishes by shielding against water ingress, deicing salts, and chemical contaminants commonly found in parking environments.

Beyond basic waterproofing, they also need to endure under vehicular traffic loads and withstand environmental stresses such as freeze-thaw cycles and UV exposure.

Key performance requirements for these membranes include strong adhesion to concrete substrates, high tensile strength to cope with structural movement, chemical resistance, and abrasion resistance. They also must maintain flexibility to cope with wall movement and should be compatible with overlying layers, such as protective traffic coatings.

Polyurethane waterproofing being applied
Application of a polyurethane waterproofing membrane on a parking garage surface.


Polyurethane Membranes for Concrete Parking Garages

Polyurethane membranes are a superior choice for both vertical and horizontal waterproofing in parking structures due to their seamless, flexible films that demonstrate excellent elongation and recovery. This facilitates the accommodation of dynamic movements in walls, decks, and slabs.

Their hydrophobic nature ensures robust resistance to water intrusion, while their chemical inertness protects against common automotive fluids and deicing chemicals. For surfaces subjected to vehicular traffic, polyurethane’s abrasion resistance helps mitigate wear and maintains membrane integrity over time. Its self-leveling properties and ability to cure into a durable, elastic film simplify installation, particularly on complex surfaces like vertical faces and joints.

Integration of polyurethane waterproofing with structural protection products such as advanced gel-type injections further enhances the overall integrity of parking garages.


Bituminous and Cementitious Coatings

Traditionally, bituminous coatings have been a popular choice in parking garage waterproofing due to their effective water barrier capabilities and ease of application. These asphalt-based materials adhere robustly to concrete surfaces, providing a chemically resistant and flexible waterproof layer. However, they can degrade under high temperatures and UV exposure, particularly in exposed deck areas.

Cementitious coatings, contrastingly, are mineral-based systems that form rigid, impermeable barriers. They are straightforward to apply and work well with concrete, making them suitable for below-grade walls and slabs. Despite their rigidity, their brittleness and limited flexibility make them less ideal in environments subject to significant structural movement or thermal stress.

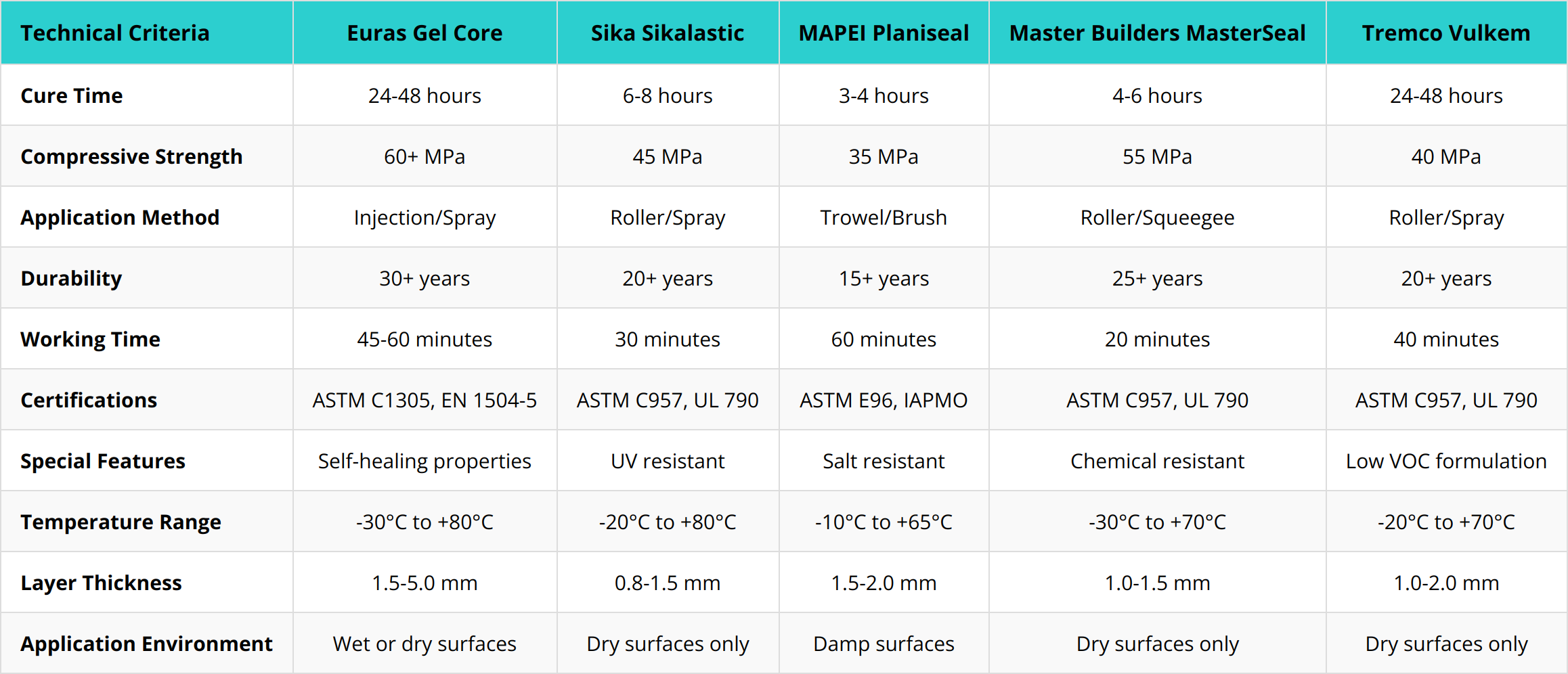

Comparison chart
Comparison of various waterproofing methods showing relative advantages and limitations in different usage contexts.

The two top recommendations based on this analysis, Euras Gel Core and Master Builders MasterSeal, show optimal compressive strength and durability suitable for the rigorous demands of parking garages.


Vehicular Traffic Coatings for Enhanced Wear Resistance

A waterproof membrane alone does not completely ensure the longevity of parking structure surfaces under constant vehicular wear. Pairing waterproof membranes with compatible traffic coatings is critical for tire load and abrasive resistance.

These additional coatings include high compressive strength, skid resistance, and chemical durability. Typically, traffic-grade coatings comprise epoxy and polyaspartic systems, which utilize aggregates to boost mechanical durability. Their design considers repetitive wheel loads, oil spills, and temperature extremes, significantly reducing membrane wear and preventing direct mechanical damage that may lead to water ingress.

Application of these coatings should only occur over fully cured waterproof membranes, meticulously following manufacturer specifications for optimal thickness and environmental conditions.

For an in-depth understanding of compatible materials and coatings for parking structures, consider exploring this detailed material guide for parking garages.


Surface Preparation and Installation Best Practices

Preparing Concrete Surfaces for Optimal Adhesion

Successful waterproofing in parking garages begins with meticulous preparation of the concrete substrates. The concrete surface must be free from contaminants like oils, dust, curing compounds, loose particles, and efflorescence, which can greatly inhibit membrane adhesion.

Depending on the contamination type and extent, cleaning methods may include high-pressure washing, grinding, or abrasive blasting. It is crucial that the surface is completely dry because moisture significantly impacts the adhesion and curing of the membrane. Moreover, cracks, spalls, and voids should be repaired using materials compatible with the waterproofing membrane to ensure a smooth, uniform substrate.

Extensive research underscores the direct correlation between the quality of the surface preparation and the durability of the waterproofing membrane, making it clear why such detailed and careful preparation is indispensable.

Step-by-Step Parking Garage Waterproofing Membrane Installation Guide

The performance of a waterproofing membrane greatly depends on maintaining controlled environmental and procedural guidelines during installation. Optimal conditions generally range between 10°C and 35°C, with relative humidity below 85% to prevent issues like bubbling or delamination during curing.

The application process typically starts with priming the concrete surface, followed by the application of multiple membrane coats to achieve the necessary thickness and system integrity. It is vital to control the thickness—most systems require a minimum of 2 mm per layer to effectively prevent water ingress, with additional layers enhancing redundancy and overall durability.

Quality control is managed through measures such as adhesion tests, thickness checks, and visual inspections, which help to identify any defects like pinholes or uneven coverage quickly. Addressing these issues promptly during the installation phase is critical to avoiding expensive post-application repairs.

Comprehensive documentation such as the Euras Technology parking garage waterproofing membrane installation guide provides detailed protocols for installers and project managers, ensuring dependable system performance.


Technical Specifications and Compliance

Selecting the appropriate waterproof membranes requires a careful evaluation of detailed product specifications available on data sheets. These specifications typically cover critical performance criteria like tensile strength, elongation, chemical resistance, and specific application details.

Compliance with recognized commercial standards (e.g., ASTM and ACI codes) is essential. These standards ensure that products meet minimal performance and safety requirements tailored for parking garage applications.

Project-specific conditions such as exposure class, traffic intensity, and local climate variables guide the selection of materials and dictate the installation techniques to be used. Documentation and ongoing verification during the installation process—covering inspection reports, test results, and manufacturer certifications—are crucial for maintaining quality assurance and facilitating future maintenance planning.

Staying updated with evolving standards and recommendations enhances the durability and safety outcomes for parking garage waterproofing, thereby protecting these significant structural investments.


Performance, Durability, and Maintenance Considerations

Evaluating Membrane Durability in Parking Garage Environments

High-performance waterproof membranes used in parking garages typically offer service lives ranging from 10 to 20 years. This lifespan is dependent on factors such as the chosen material, the quality of installation, and the environmental conditions to which the membranes are exposed.

Membranes must withstand challenges such as continuous vehicular traffic, harsh deicing chemicals, UV radiation, and temperature fluctuations. Durability studies highlight that membranes featuring excellent tensile strength, chemical resistance, and elasticity generally perform better under these demanding conditions.

Regular monitoring of these membranes helps in identifying wear patterns early, allowing for timely interventions that can significantly extend their service lives.

Integrating Concrete Waterproofing Solutions for Holistic Protection

For comprehensive protection, it's crucial to integrate membrane waterproofing with concrete treatment strategies that address potential reinforcement corrosion and damage from freeze-thaw cycles. This might include using corrosion inhibitors, cathodic protection, and surface sealers that complement the primary waterproofing approach.

Adequate management of freeze-thaw cycles might necessitate the use of air-entrained concrete and ensuring proper drainage systems are in place to prevent water accumulation near the membranes. These combined strategies help mitigate cracking and deterioration, thus fortifying the overall structural resilience of the parking garage.

This comprehensive approach aligns with modern standards that prioritize multifaceted durability in harsh environments typically found in parking garages.

Routine Inspection and Maintenance Strategies

Adopting a proactive inspection regimen is essential for the long-term success of parking garage waterproofing systems. Regular schedules should include both visual and electronic inspections to identify potential issues such as membrane breaches, blistering, or wear on the coatings before they turn into more significant problems.

Appropriate repair techniques might involve localized patching, reapplication of coatings, or in severe cases, complete membrane replacement. Addressing issues early and conducting timely maintenance can substantially reduce life-cycle costs and prolong the effectiveness of the waterproofing system, offering significant economic advantages over delayed, major repairs or complete structural overhauls.


Specialized Areas: Garage Wall Waterproofing and Concrete Protection

Best Waterproof Membranes for Parking Garage Walls

The selection of waterproof membranes for garage walls requires careful consideration due to their vertical orientation, the potential for differential movement, and exposure to different environmental conditions compared to horizontal surfaces.

Optimal wall membranes must offer significant elasticity to manage minor structural shifts while providing dependable impermeability to water. Products with self-healing properties that can automatically seal minor punctures are particularly valuable in these applications.

Furthermore, these membranes should exhibit strong adhesion to vertical concrete surfaces and be compatible with supplementary systems such as drainage boards or protection panels commonly installed in retaining wall assemblies.

For detailed guidance on retaining wall and vertical waterproofing, consider exploring resources like Polyguard’s retaining wall waterproofing overview and Weber’s simple step-by-step guide to wall waterproofing.

How to Waterproof a Concrete Parking Garage

A comprehensive approach to waterproofing a concrete parking garage involves applying high-performance membranes on both decks and walls, accompanied by concrete surface treatments and specialized joint systems. Accurate detailing at joints, penetrations, and transitions is critical for preventing water leaks.

Successful case studies demonstrate the effectiveness of layered systems that include elastomeric membranes, robust traffic coatings, and integral concrete admixtures providing synergistic protection.

Emphasizing surface preparation and adhering to quality-controlled installation protocols, as outlined by authoritative sources, ensures the highest performance standards in parking garage waterproofing projects.


Conclusion

Investing in high-quality waterproof membranes tailored for parking garage walls and concrete surfaces is your best defense against costly water damage, corrosion, and structural deterioration. By selecting membranes with proven durability and pairing them with traffic-grade coatings, you create a resilient barrier that withstands the harshest conditions, from freeze-thaw cycles to relentless vehicular abrasion.

To maximize your parking structure’s lifespan and performance, focus on meticulous surface preparation and adherence to technical specifications, ensuring membranes bond firmly and maintain integrity under stress. Regular inspections and proactive maintenance will keep your waterproofing system effective and cost-efficient long after installation.

Keep these essential actions in mind:

  • Choose membranes designed for the specific demands of horizontal decks and vertical walls, such as polyurethane or advanced gel core systems.
  • Prioritize thorough concrete cleaning, drying, and repairs before membrane application to guarantee optimal adhesion and durability.
  • Integrate robust traffic coatings only after membranes fully cure, respecting manufacturer guidelines for layer thickness and environmental conditions.
  • Schedule routine inspections and timely repairs to detect early wear, preventing costly damage and extending service life.
  • Stay informed on product innovations and compliance standards to continuously improve waterproofing strategies.

Start securing your parking garage’s future today by consulting trusted providers like Euras Technology for advanced waterproofing solutions and installation best practices.

Waterproofing is more than a protective layer—it's a strategic investment in resilience and sustainability. When you embed quality and foresight into your parking structure’s waterproofing, you transform vulnerability into lasting strength, safeguarding assets one membrane at a time.

Additional Resources

This article integrates expert insights and product solutions to guide your parking garage waterproofing efforts, blending technical rigor with practical application for resilient infrastructure.
